Building Description
- Building Type: Commercial
- Structural System: RC special moment resisting frame
- Number of Stories: Six Stories with basement
What?
- Analysis and Design of a Reinforced Concrete Commercial Building
- Detailed design of structural components and provide structural drawings
- Provide Structural Analysis Report
How?
- Performed preliminary design of RC members using manual sheets
- Calculated design dead, live, and Seismic loads in accordance with relevant Indian and Nepalese Standards
- Used ETABS 18.0.2 for analysis and design
- Performed Dynamic analysis using the Response Spectrum Method using linearly elastic response spectra
- Performed Modal Analysis
- Used Excel sheets for detailed design of Structural components by incorporating the forces derived from the analysis model
- Used SAFE for Footing design
- Created structural drawings in AUTOCAD to illustrate the design

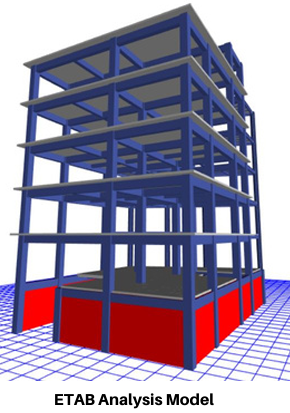

ETAB model

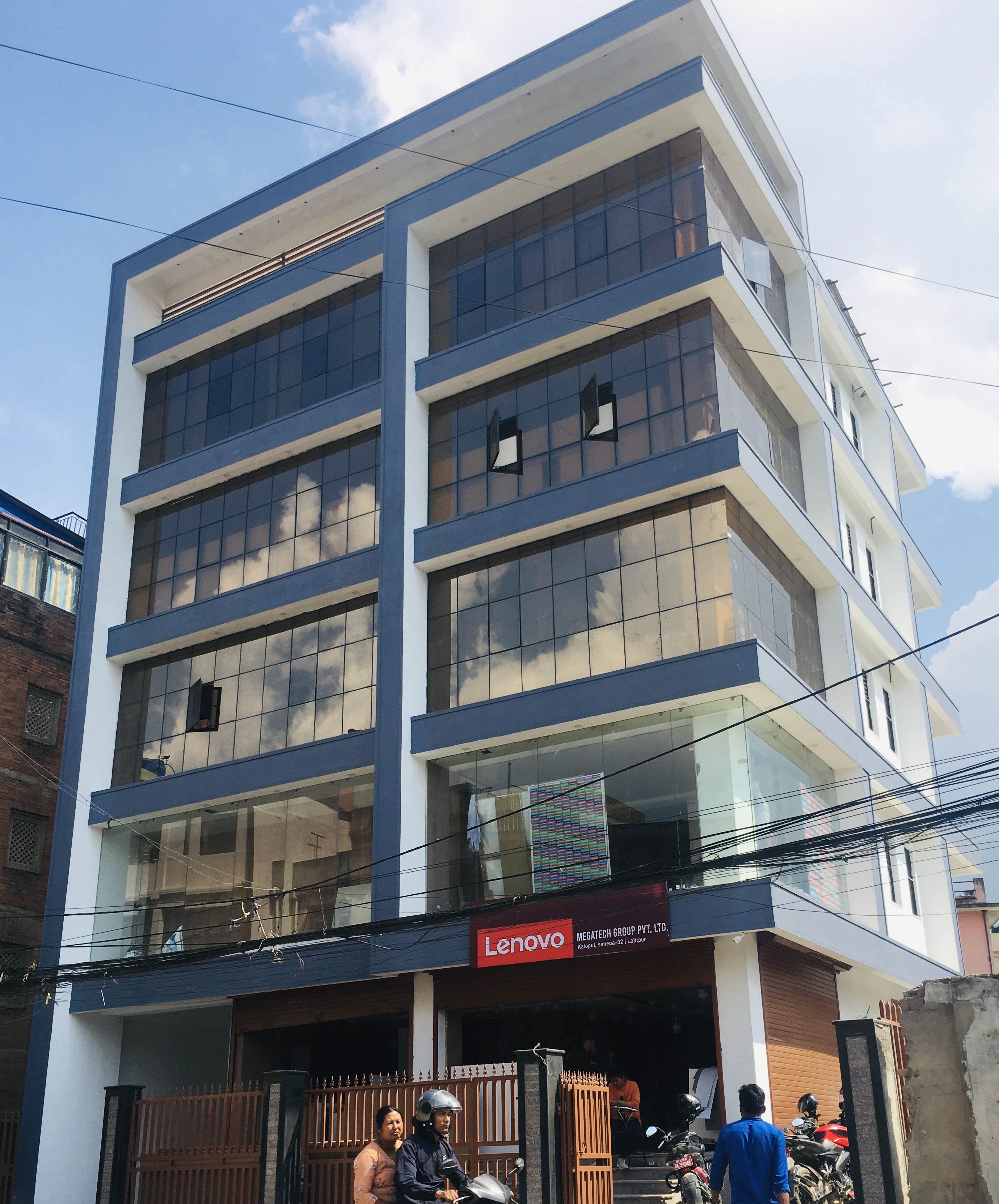

Constructed Building

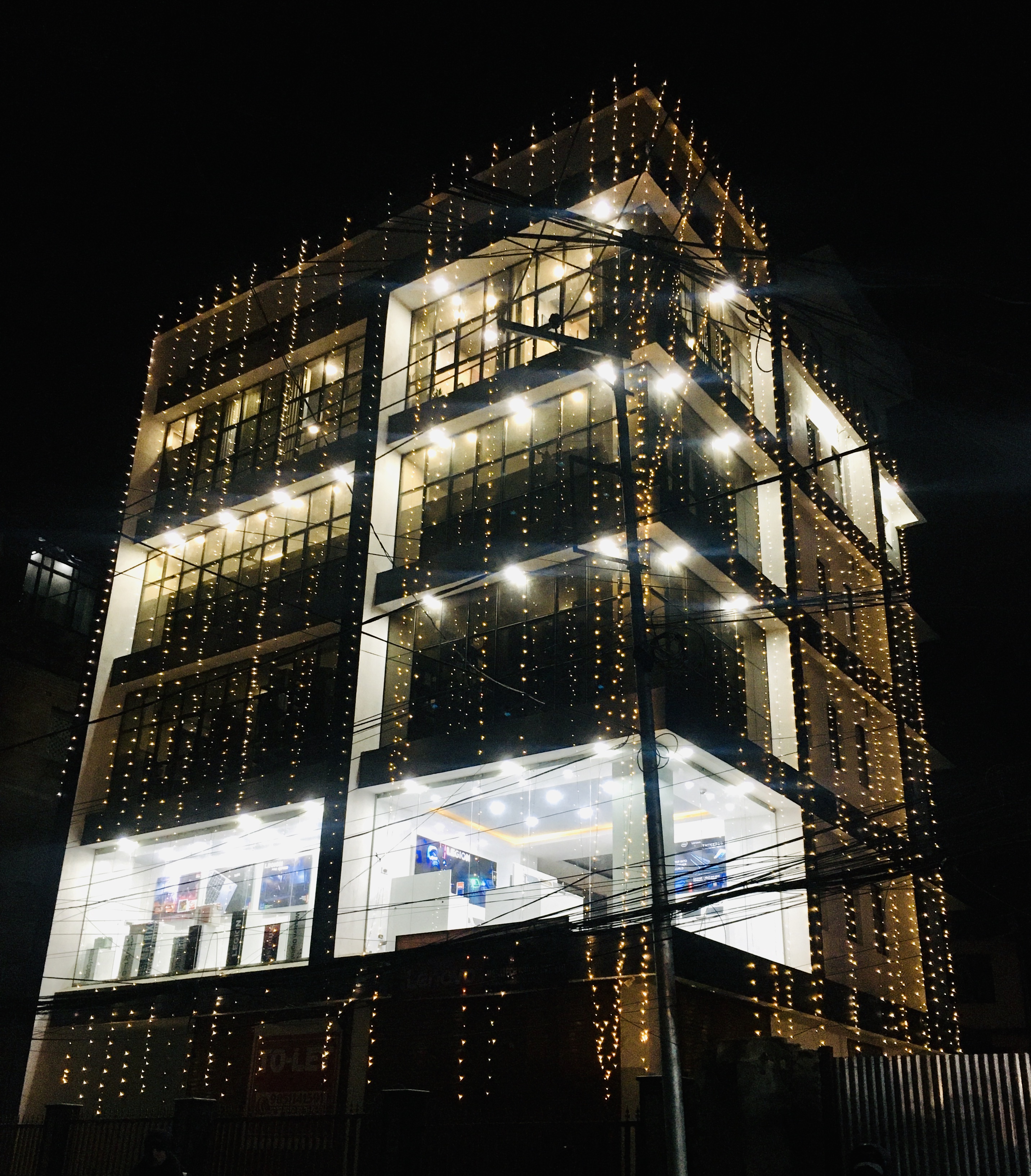

Night view

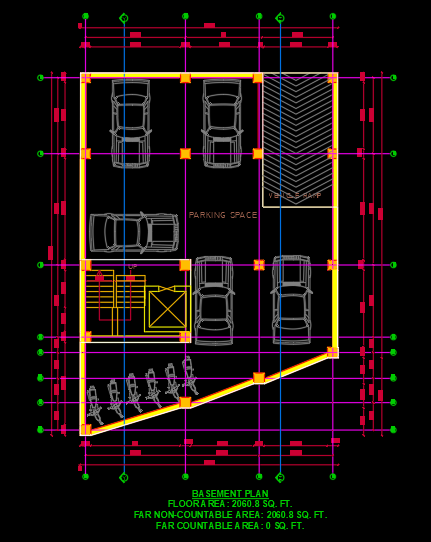

Typical Plan

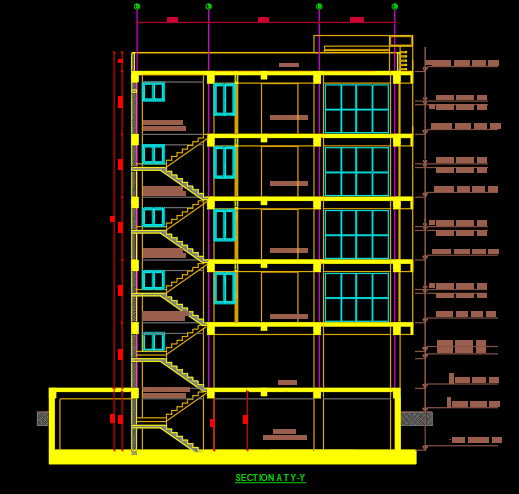

Section

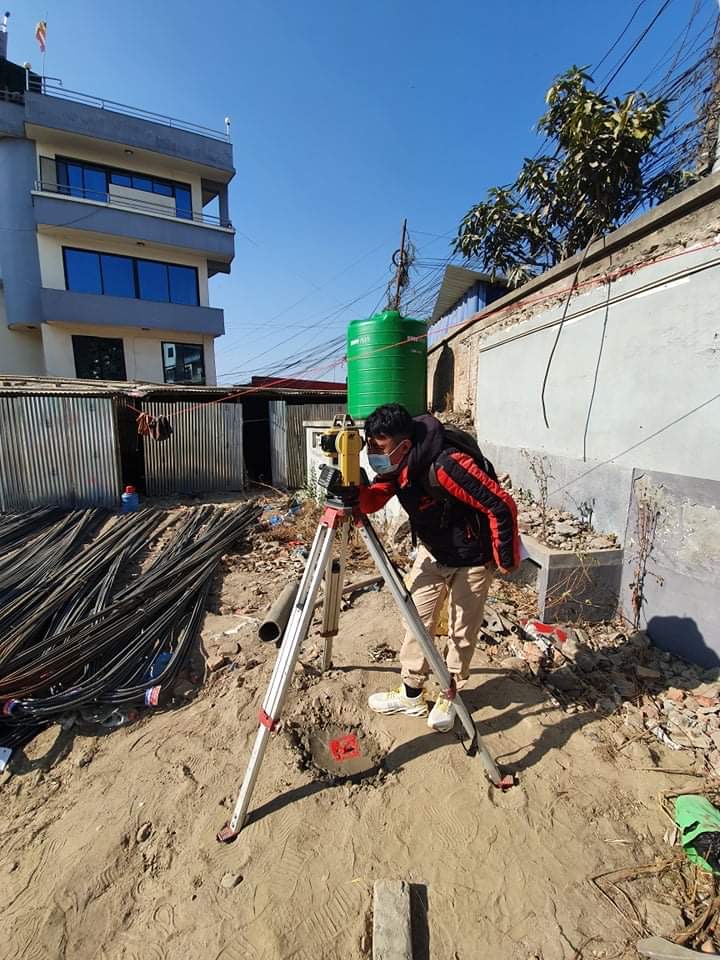

Surveying works

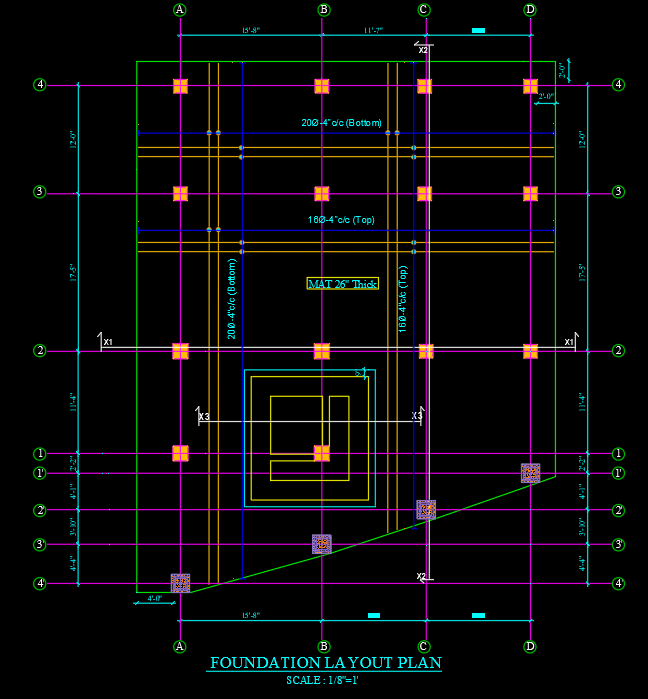

Footing Details

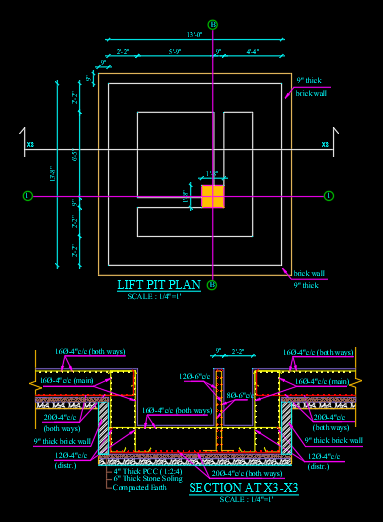

Details for pit

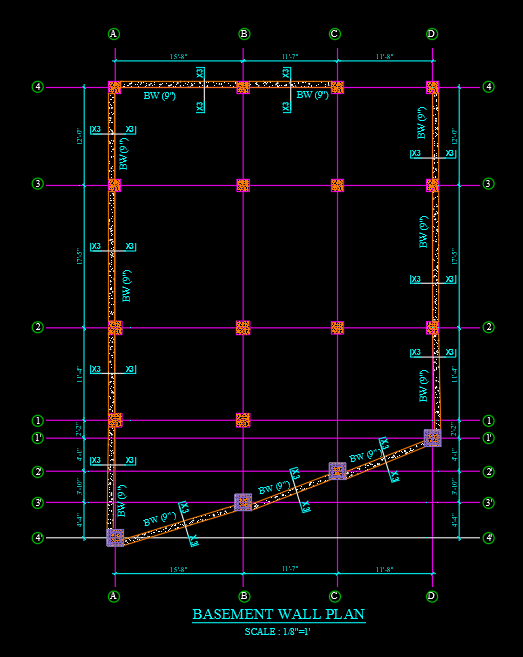

Basement wall details

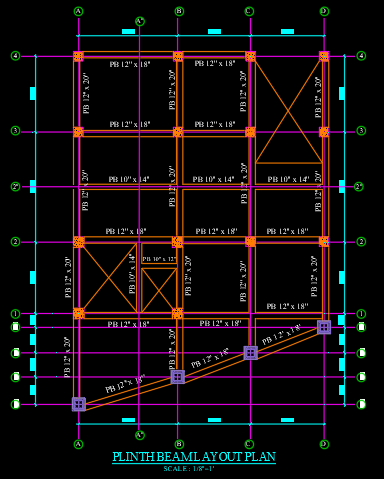

Beam details

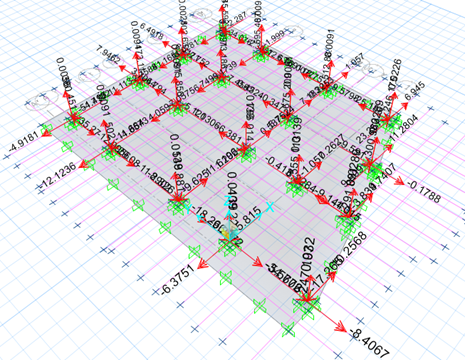

Load Application in SAFE

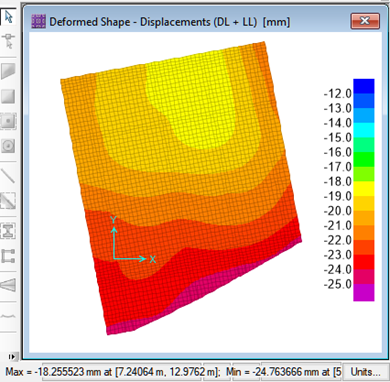

Footing Deformed shape

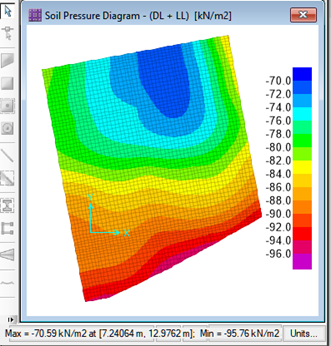

Footing soil pressure

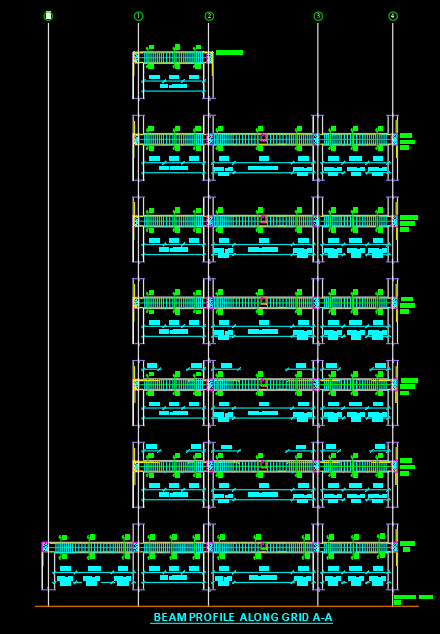

Beam longitudinal section
Reinforcement

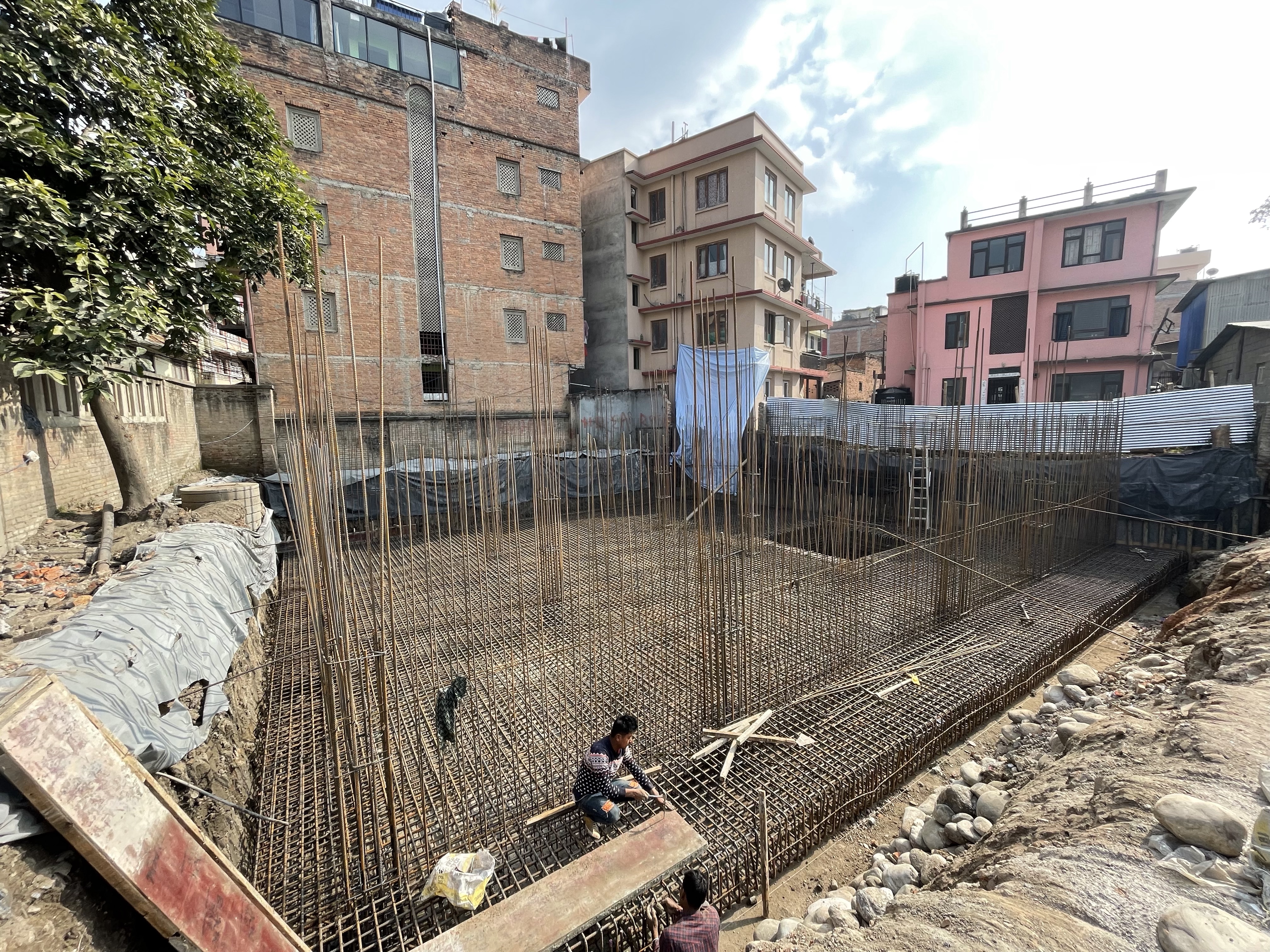

Footing Rebar

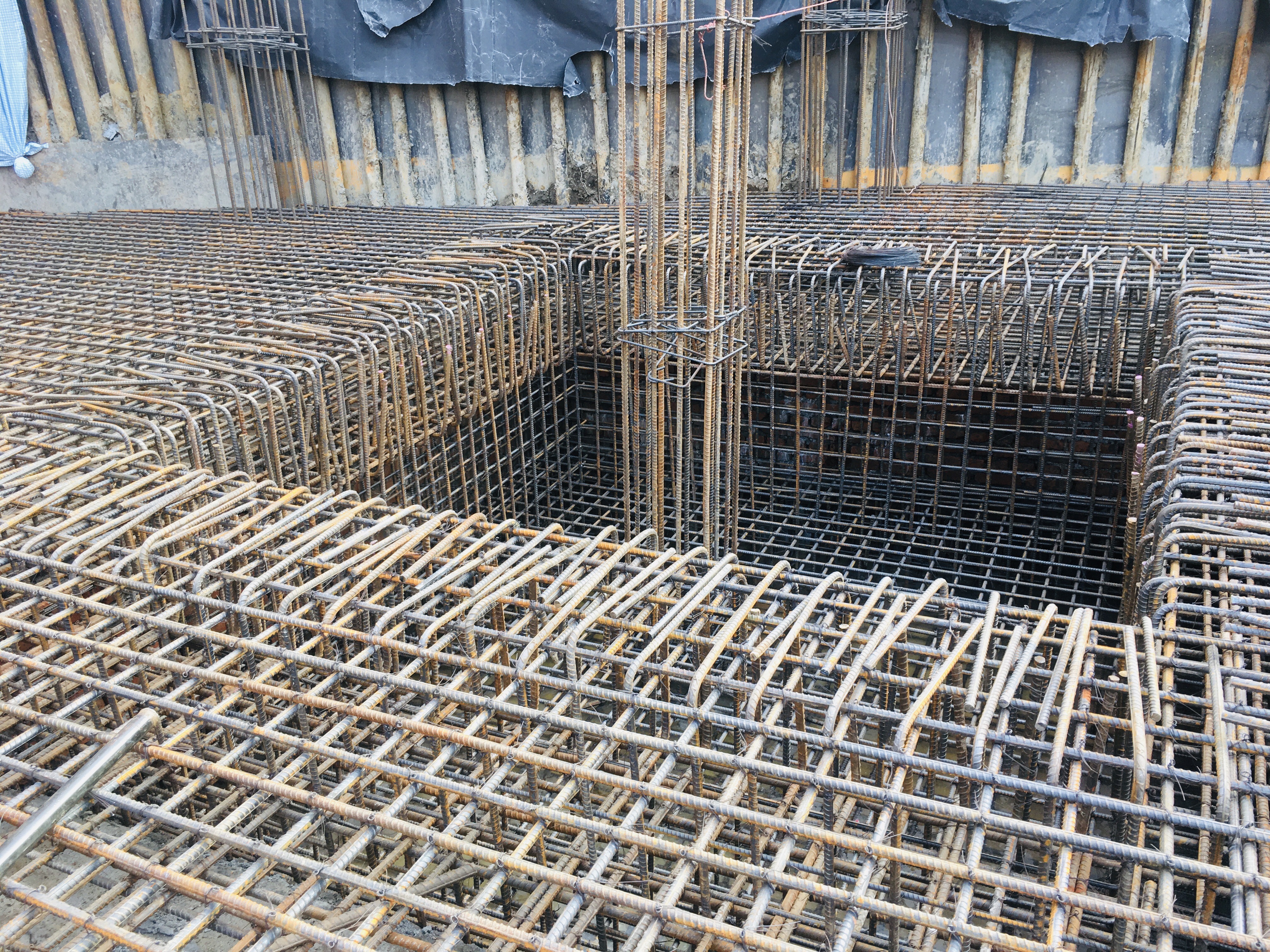

Pit rebar
