Building Description
- Building Type: Residential
- Structural System: RC special moment resisting frame
- Number of Stories: Two and half story
What?
- Analysis and Design of a RCC Residential Buildings
- Detailed design of structural components and provide structural drawings
- Prepararion of Structural Analysis Report as per Lalitpur Metropolitan City
How?
- Performed preliminary design of RC members using manual sheets
- Calculated design dead, live, and Seismic loads in accordance with NBC 105, IS 1893.
- Used ETABS 18.0.2 for analysis and design
- Performed Static analysis
- Used Excel sheets for detailed design of Structural components by incorporating the forces derived from the analysis model
- Used SAFE for Footing design
- Created structural drawings in AUTOCAD to illustrate the design

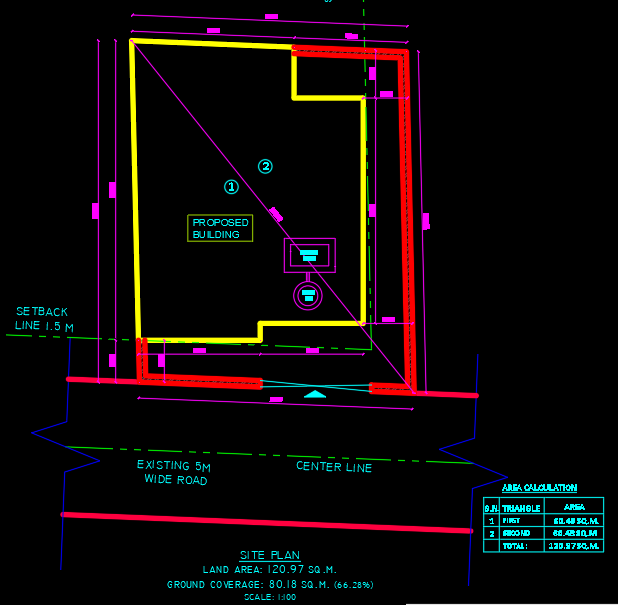

site plan

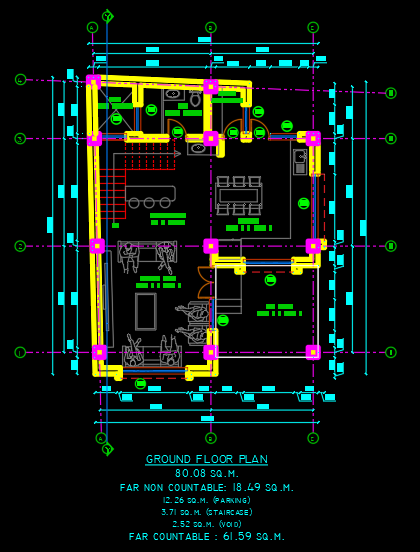

Floor plan

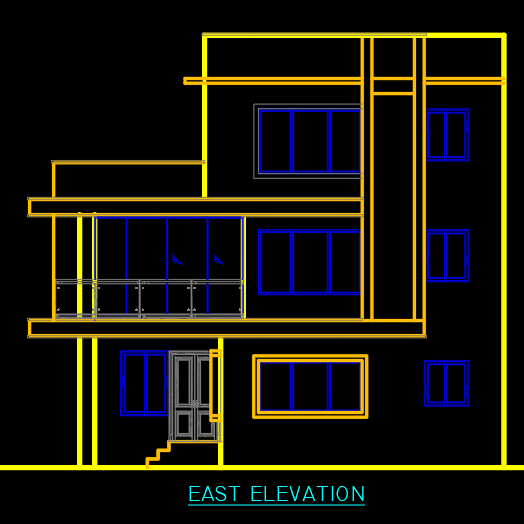

Elevation

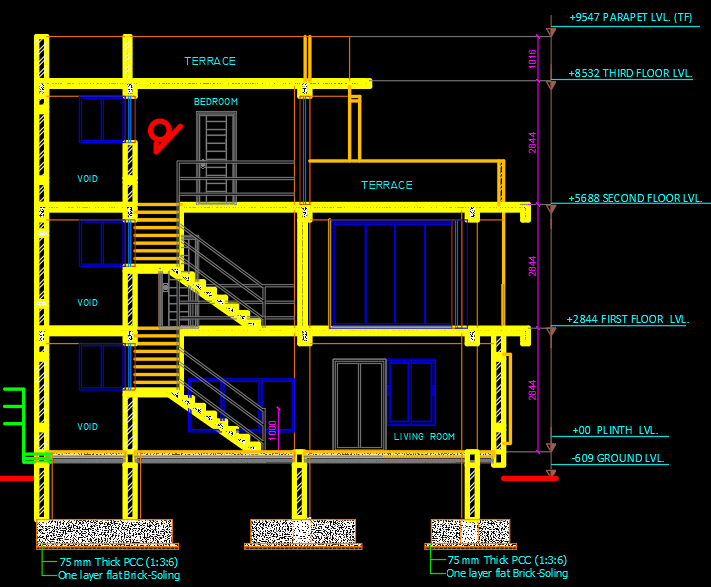

Section
Front view
Night View

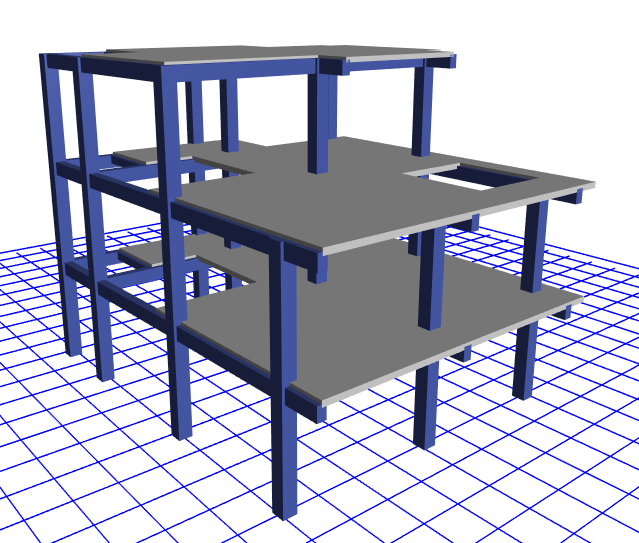

ETAB model

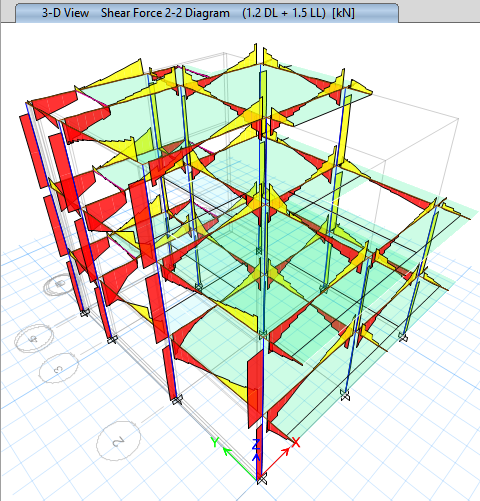

SFD

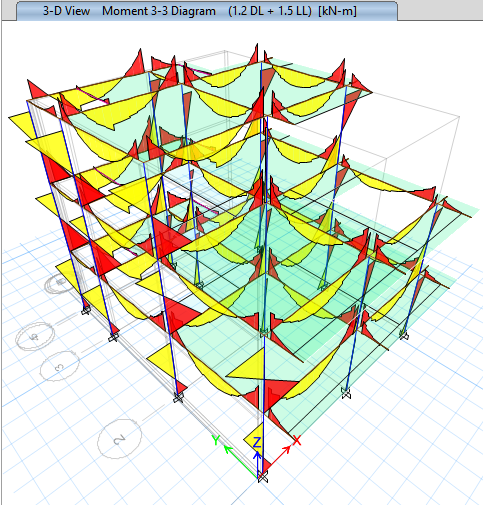

BMD

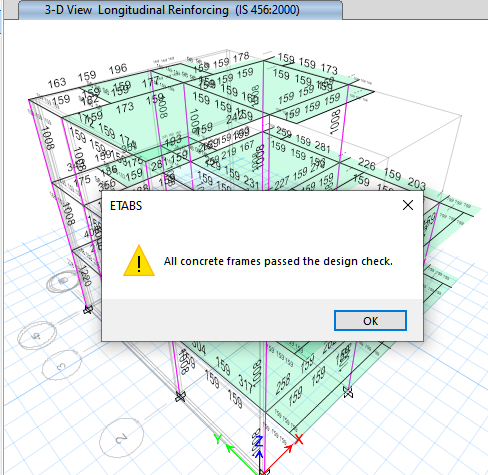

Model Pass
Beam
Footing

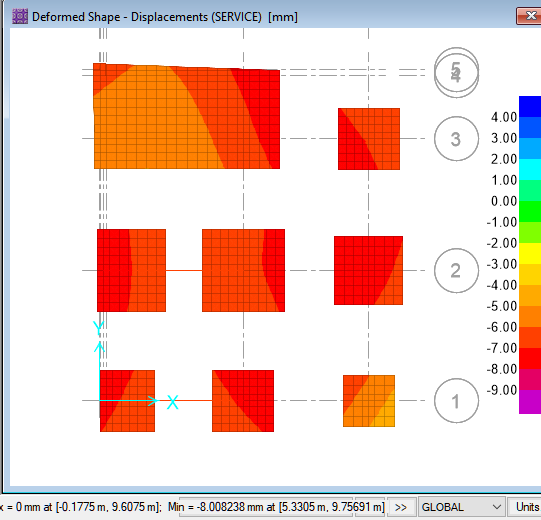

Deformed Shape

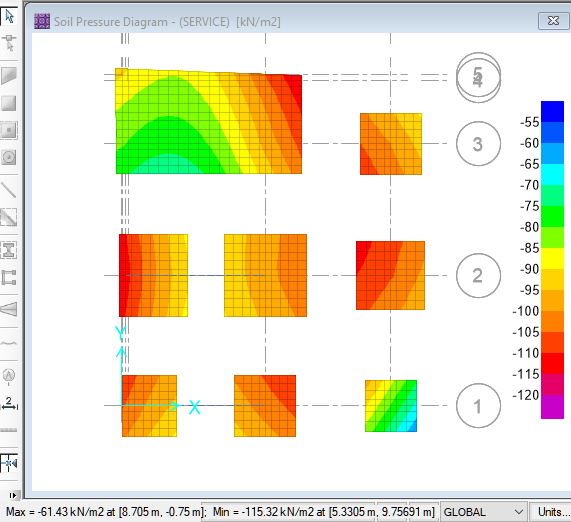

Soil Pressure

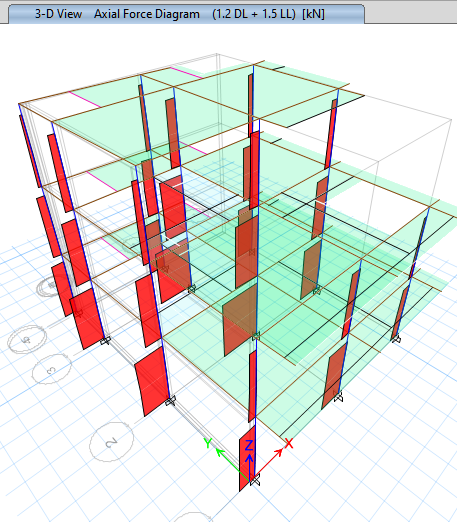

AFD
